CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug

Name: CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug
Brand: CNLINKO
Price: 7 USD

China CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : BD-20-C12PE-02-001A&BD-20-J12sx-02-401A

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 10

Price : US$7,25-8,25

Type : XLR

Application : Power

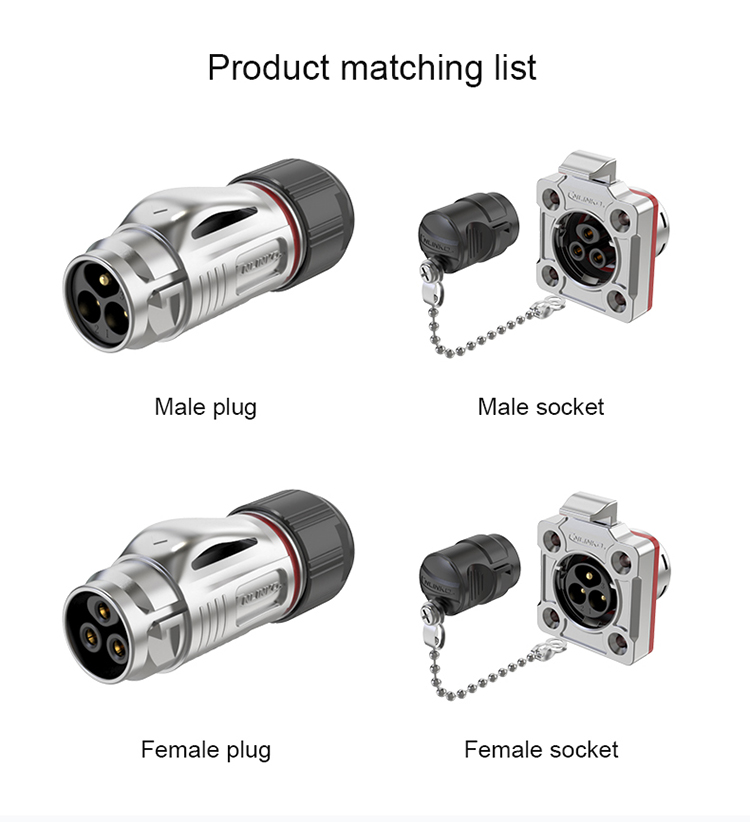

Gender : male and female

Produce type : Power connector

Current rating(A) : 5A

Operating voltage : 250V

Protection level : IP67/IP65

Shell Material : PBT

Contact pin : Copper alloy(gold-plated)

Assembly : Solder

Contact Now

CNlinko M20 Industrial Waterproof IP67 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug

Product Description

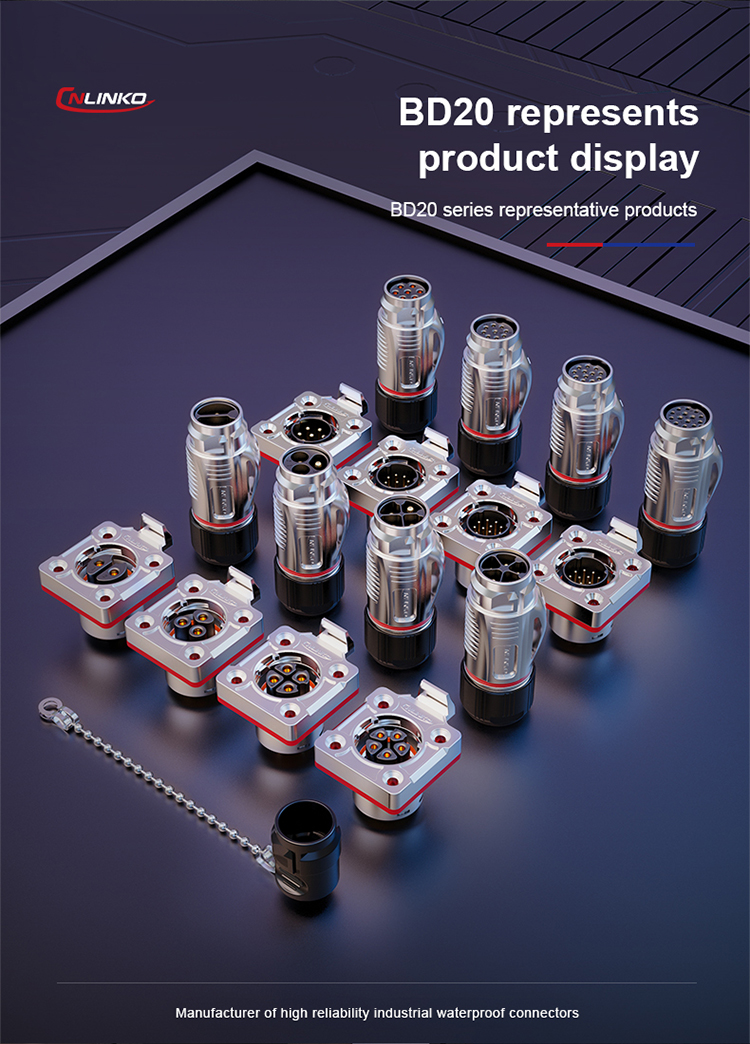

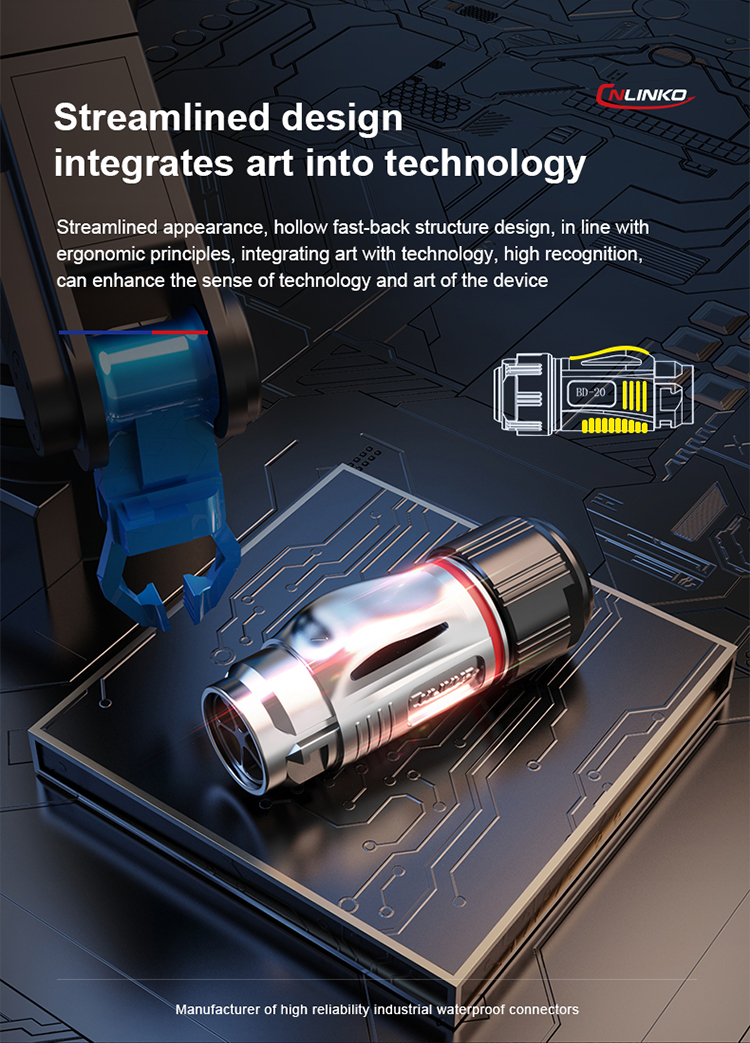

BD series : high reliability for longterm work, waterproof and corrosion resistance, high transmission efficiency, high and low temperature resistance and ergonomic design.

1.Has good temperature rise performance, more reliable for long-term continuous operation

2.Using high-end contact material(copper with gold-plated), signal and data transmission is more efficient

3.Reliable connection and smaller size, suitable for road monitoring overhead scenes

4.Waterproof and corrosion-resistant, no fear of road monitoring outdoor environment

5.High and low temperature resistance, can adapt to the influence of the four seasons climate environment.

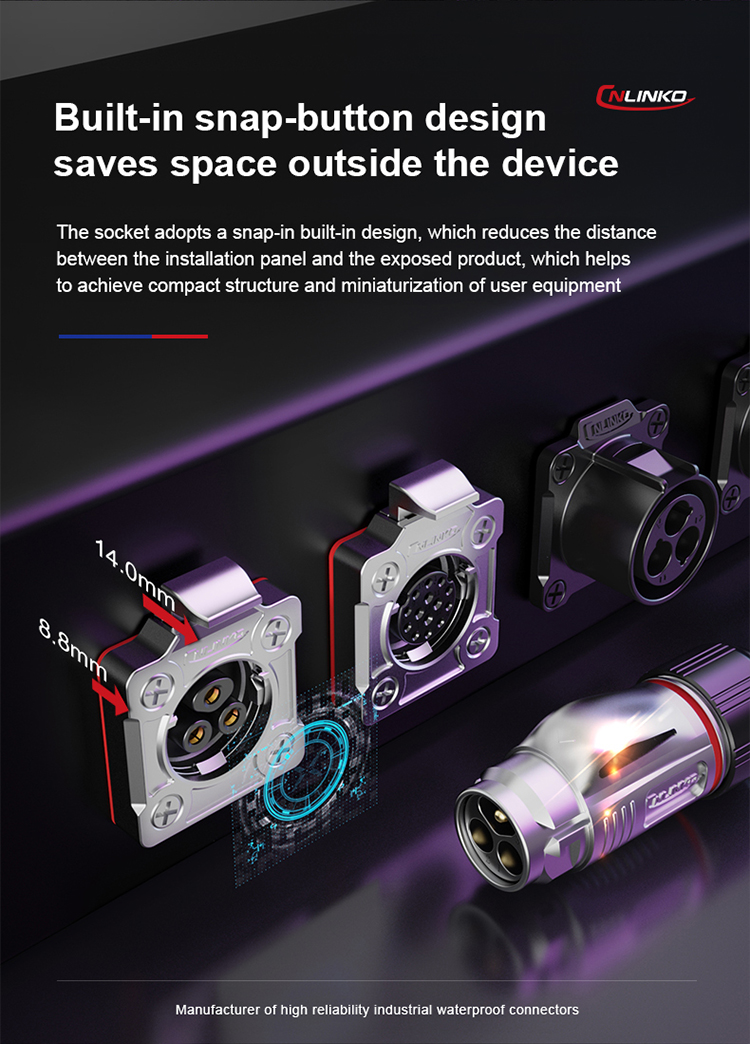

6.Effectively reduces the distance between the installation panel and the exposed products, saving the external space of the user equipment.

Specifications

BD-20-C07PE-02-001A BD-20-J07SX-02-401A
Connecting mode	Bayonet connection
Protection level	IP67
Cable specification	0.5mm² /20AWG
Diameter range	Φ5.0mm ~Φ6.5mm
Contact diameter×Qty	Φ1.0×12
Current rating(A)	5A
Operating voltage(AC.V.rms)	250V
Withstand voltage(AC.V)1min	1500V
Contact resistance	<5.0mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~85°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0

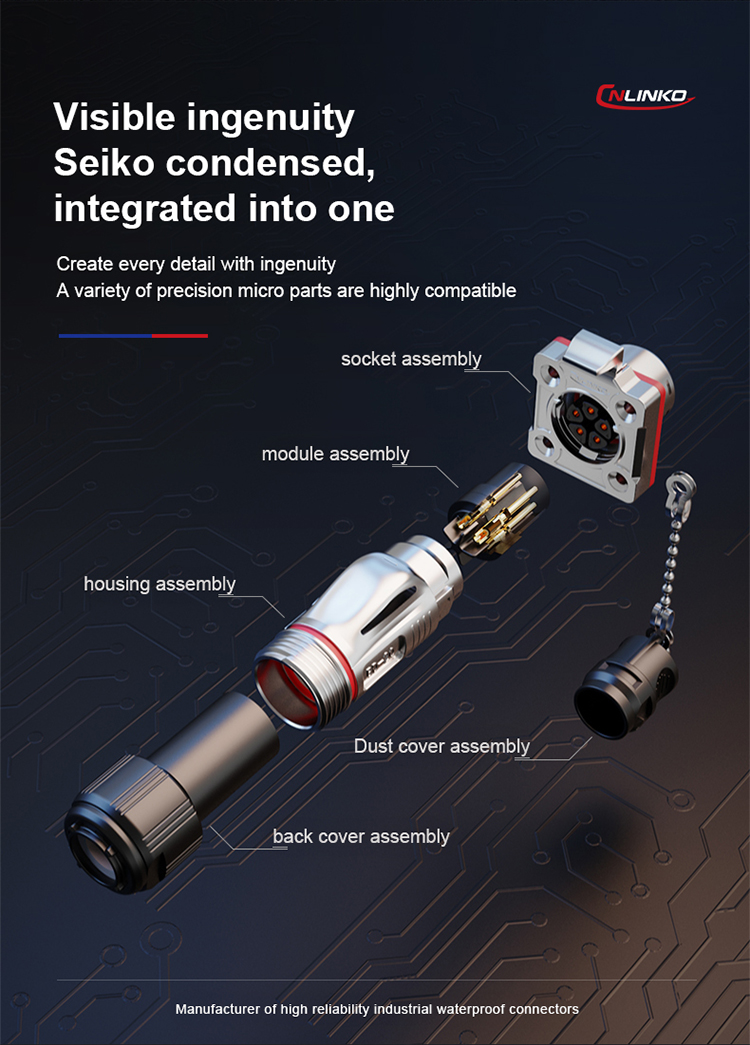

Material

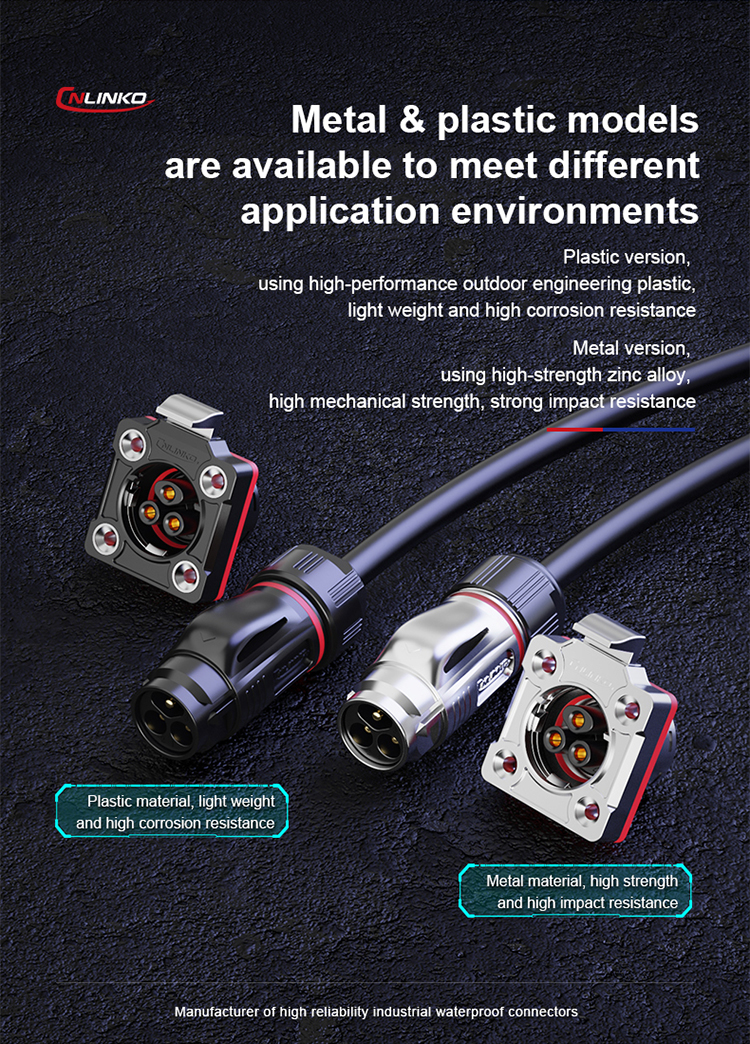

Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel

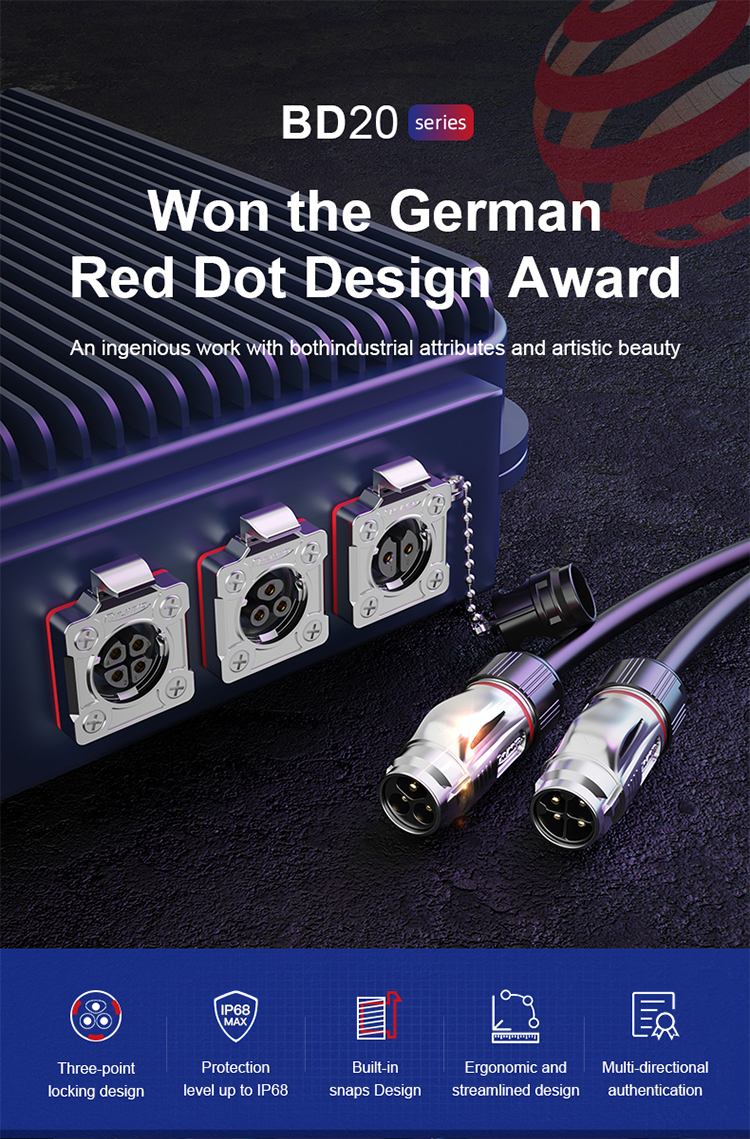

Main characteristics

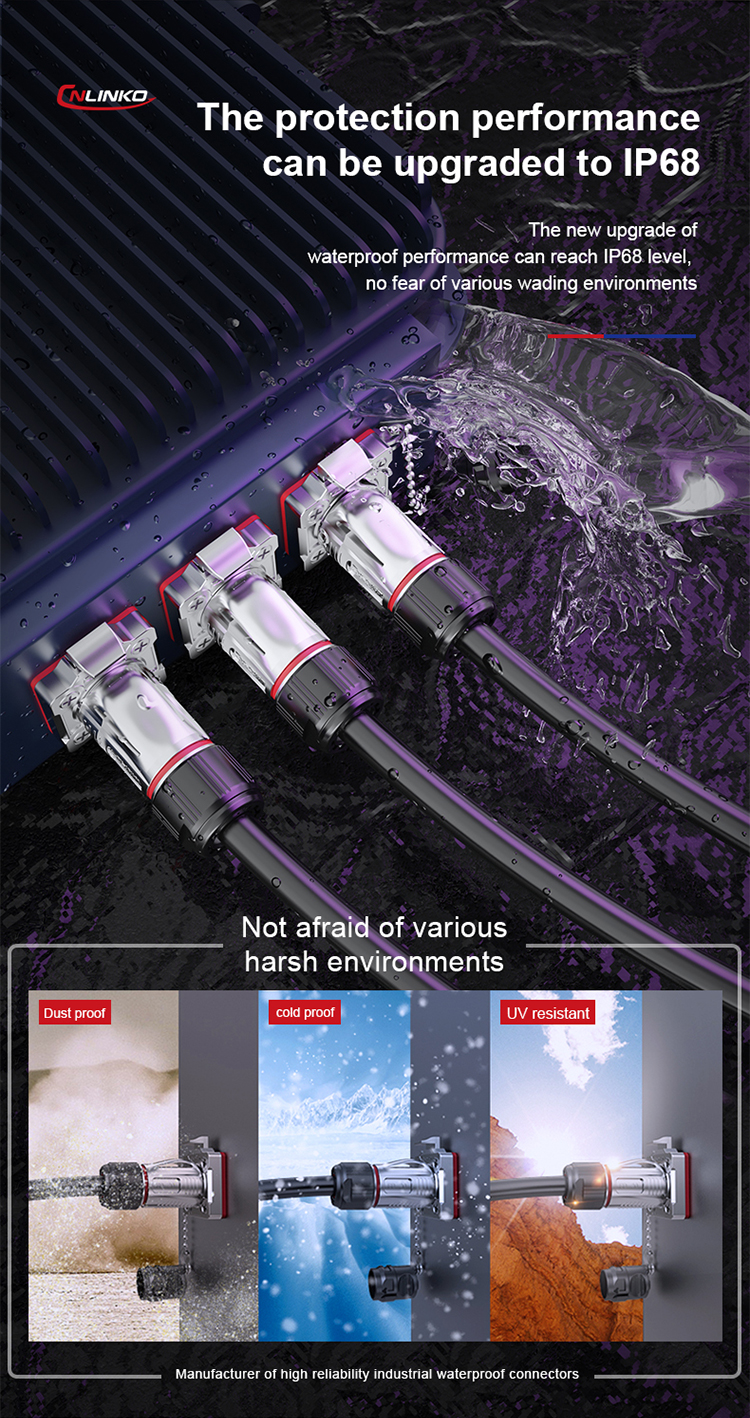

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
bayonet connect; socket with cover

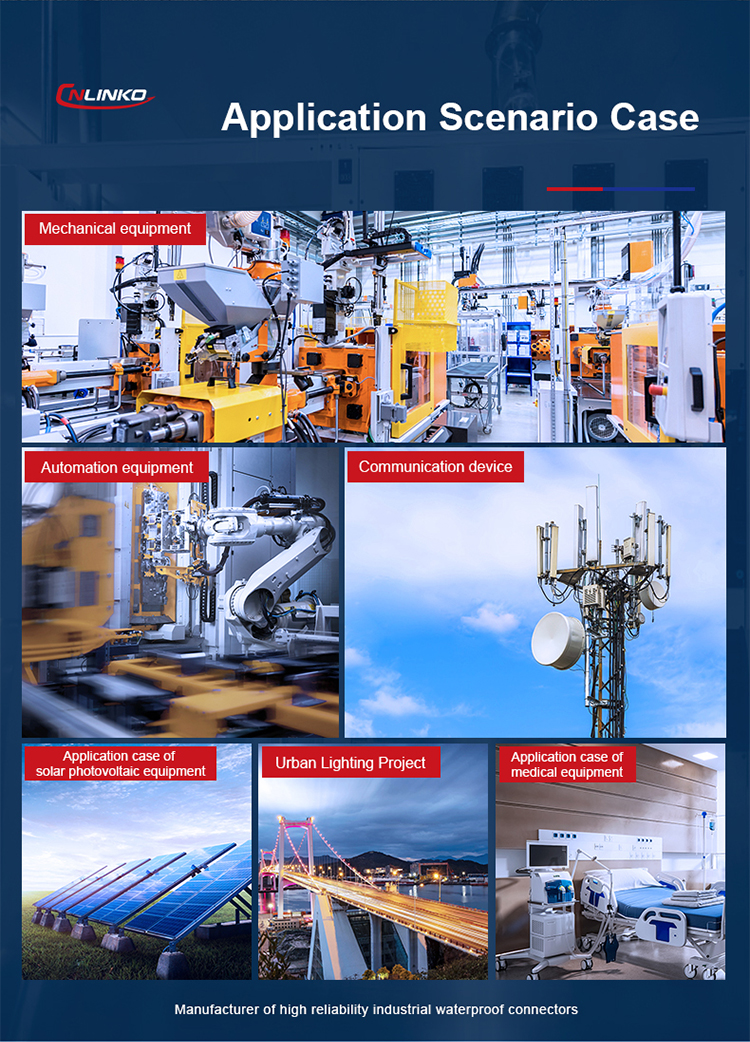

Application industries
Stage equipment - The smart grid
Medical equipment - Server

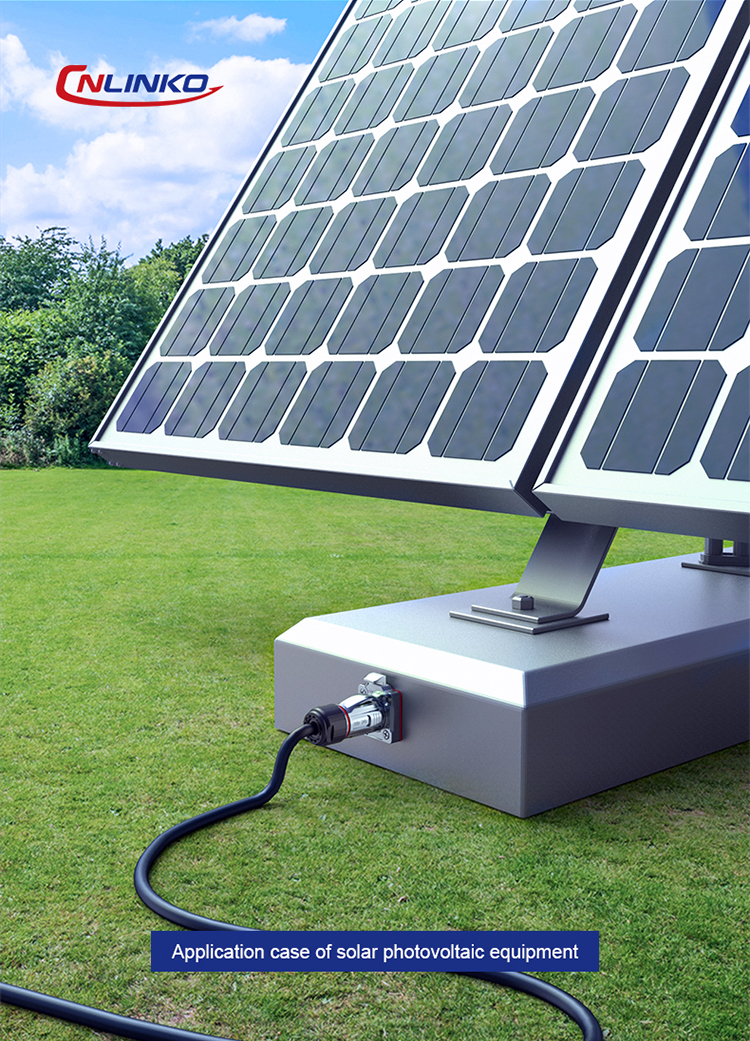

Solar energy equipment - Marine equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug

Certifications

CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug Images
