Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector

Name: Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector
Brand: CNLINKO
Price: 6.14 USD

China Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : BD-24-C10PE-03-001

MOQ : 2

Price : $6.14-7.16

Type : Signal

Application : Industrial

Gender : male and female

Certificate : ISO9001/CE/ROHS/REACH/MSDS

Produce type : Waterproof connector

Keywords : Industrial connector

Current rating(A) : 10A

Protection level : IP68

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : plug and socket connector

Assembly : Solder high quality connector

Operating voltage : 400V

Contact pin : Copper alloy(gold-plated)

Contact Now

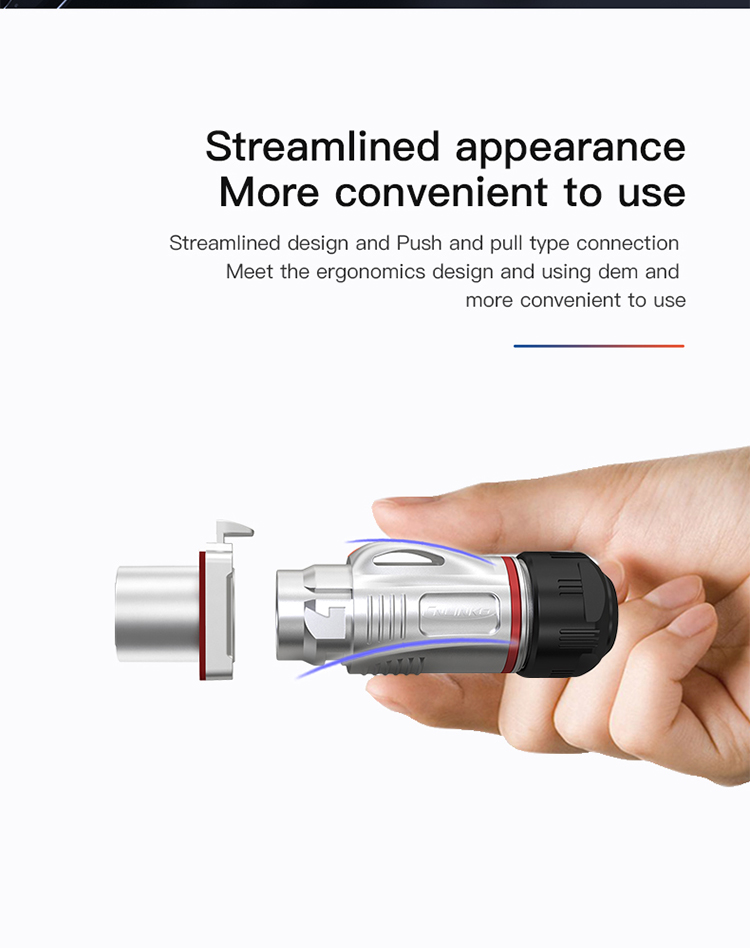

CNLINKO BD24 Metal 10 Pin IP68 Industrial Waterproof Circular Connector

Product Description

Specifications

Specifications
Connecting mode	Bayonet connection
Protection level	IP65/IP67
Cable specification	1.0~1.5mm2 / 18~16AWG

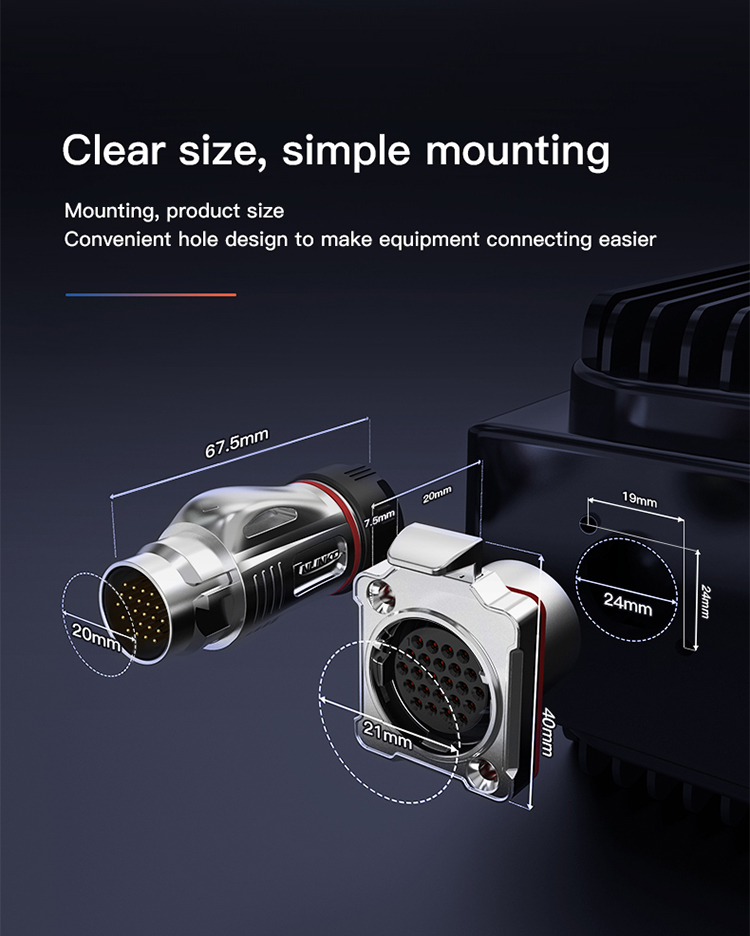

Diameter range	Φ10mm~Φ13mm
Current rating(A)	10A
Temperature rise	20A contact temperature below 30℃ 25A contact temperature below 40℃
Operating voltage(AC.V.rms)	400V
Contact resistance	<1.0mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0

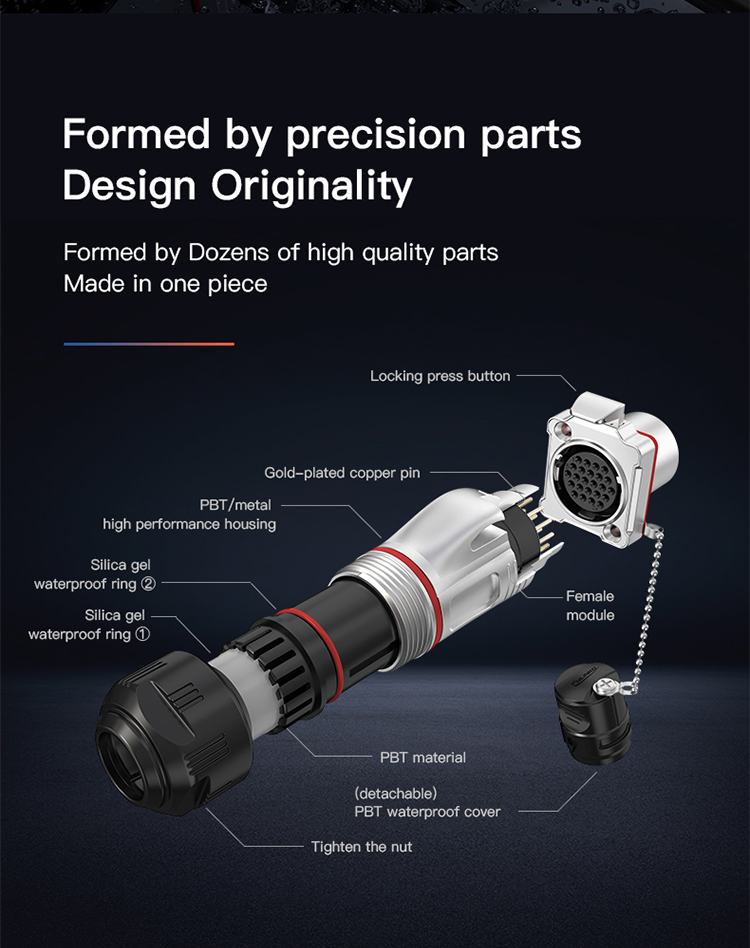

Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)

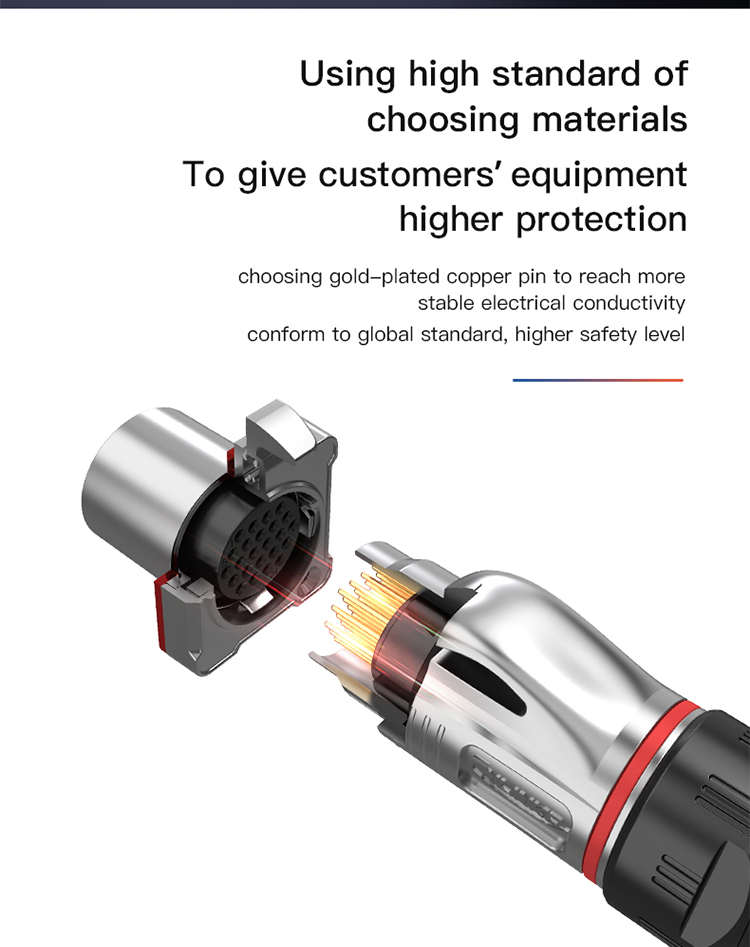

Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

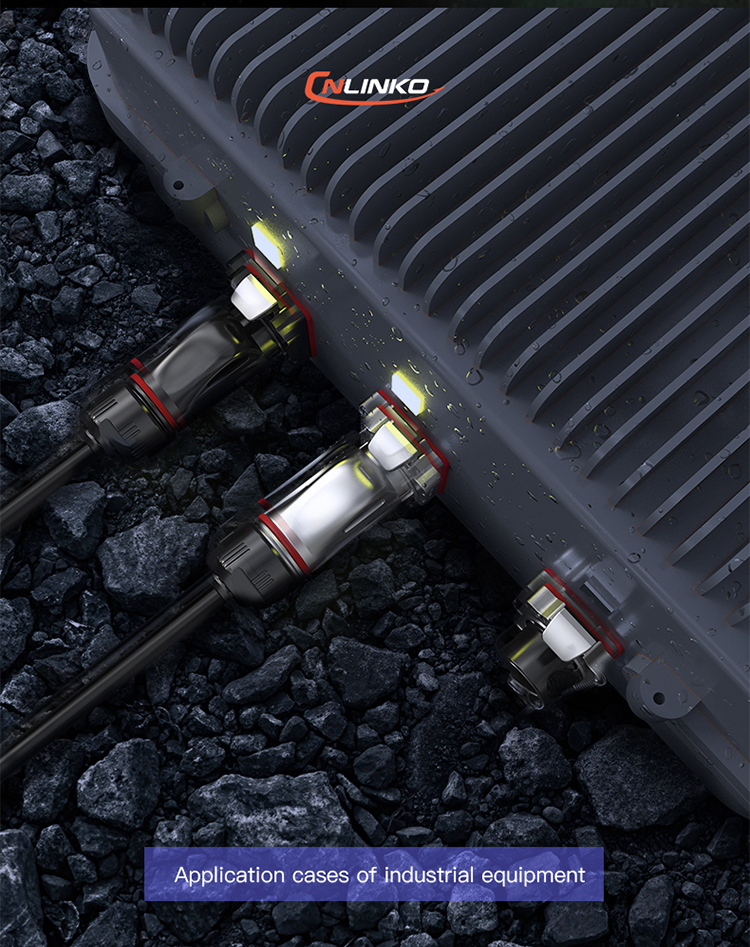

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector

Cnlinko Connector BD24 Industrial Waterproof Metal Female Male IP68 10 Pin Plug Socket Cable Connector Images
