CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

Name: CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector
Brand: CNLINKO
Price: 10.60 USD

China CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : BD-24-C19PE-02-001

MOQ : 2

Price : US$10.60-11.60

Type : Signal

Application : Industrial

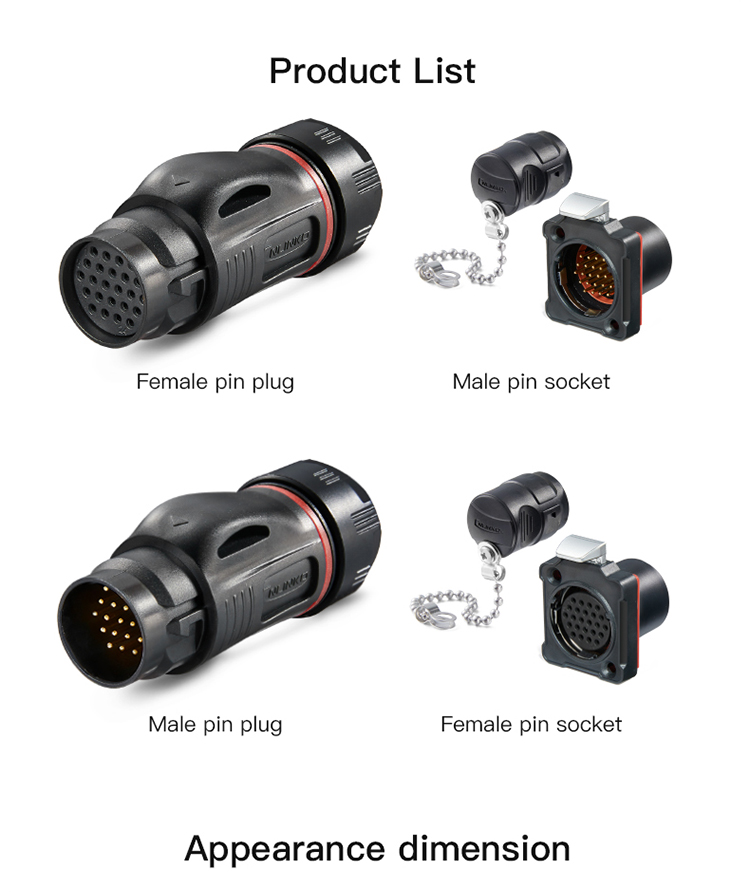

Gender : male and female

Certificate : ISO9001/CE/ROHS/REACH/MSDS

Produce type : Waterproof connector

Keywords : Industrial connector

Current rating(A) : 5A

Protection level : IP67/IP65

Shell & Insulated Parts : High Performance Engineer Plastic

Connecting mode : plug and socket connector

Assembly : Solder high quality connector

Operating voltage : 250V

Contact pin : Copper alloy(gold-plated)

Contact Now

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector

Features:

Multi-purpose design (power, signal, data) for a wide range of application needs;
Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;

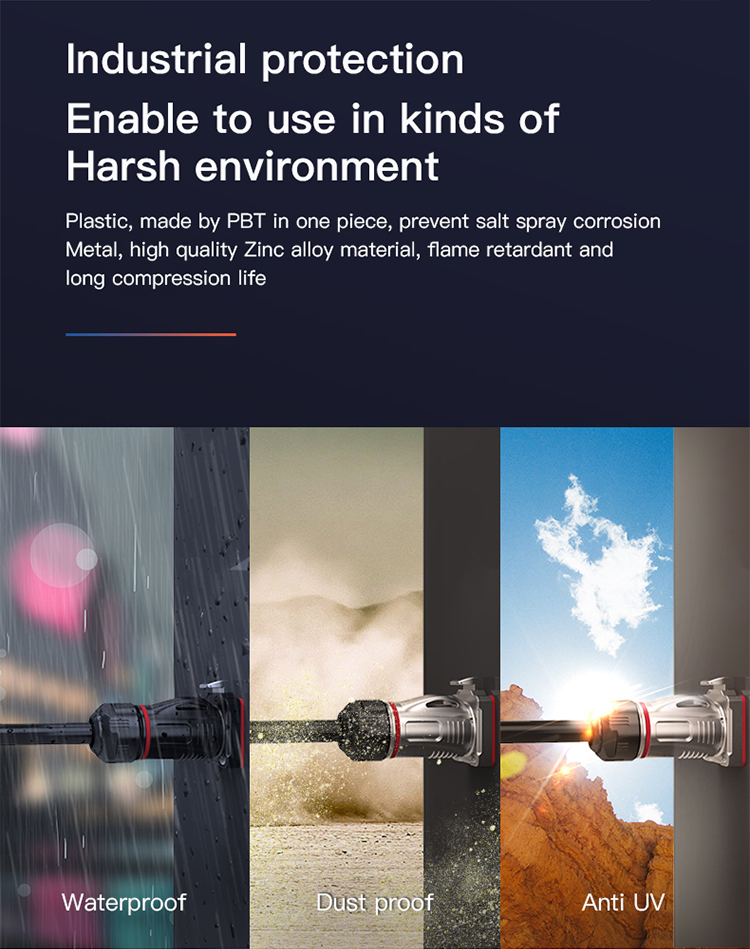

PBT material shell, stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;

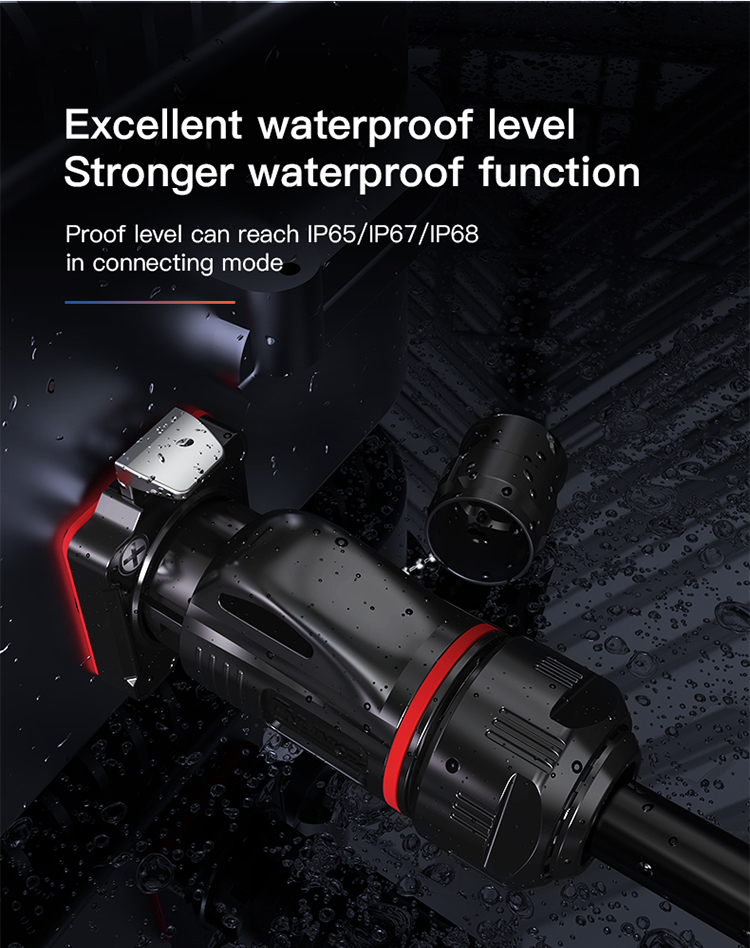

IP67 protection level in connection state;
Rated current 5A/10A/25A;

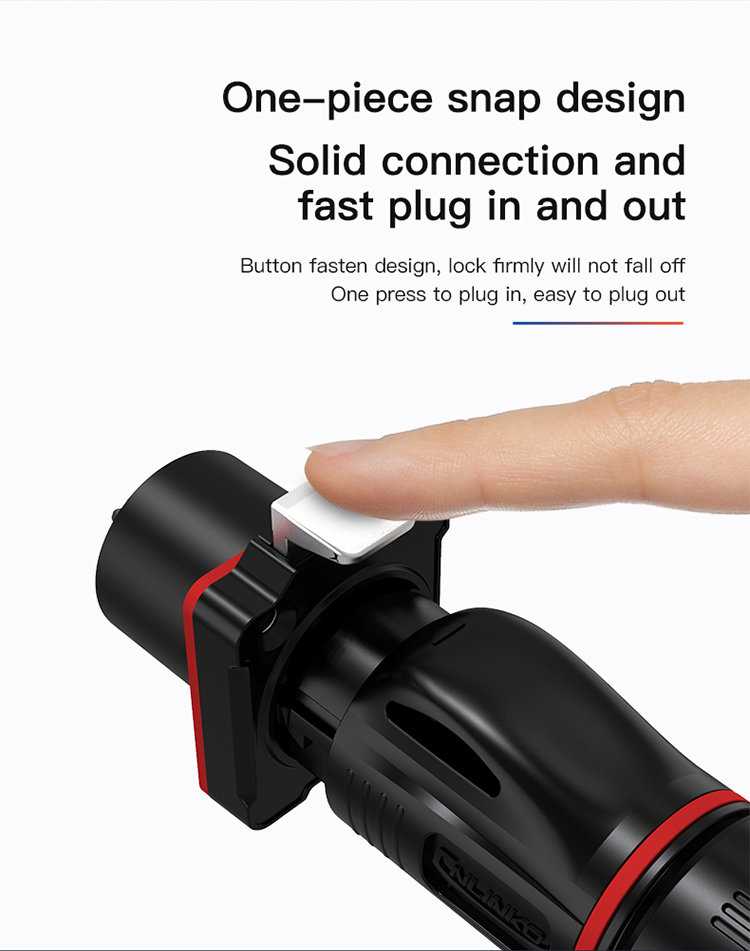

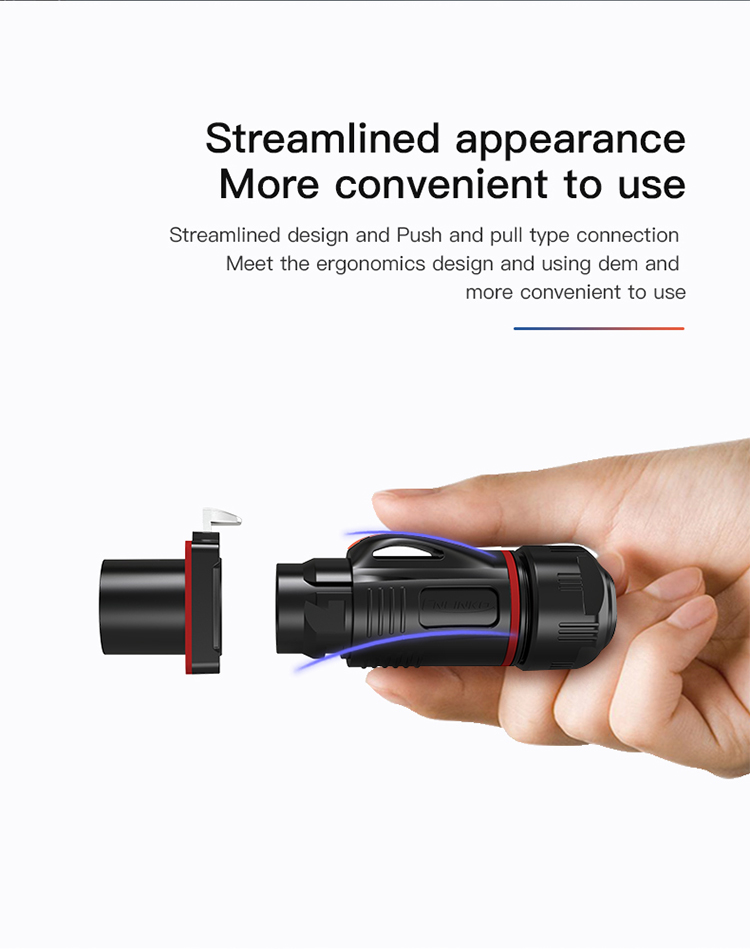

One-piece streamlined design.

Product Description

Specifications

Specifications
Connecting mode	Bayonet connection
Protection level	IP65/IP67
Cable specification	2.5~4mm2 / 14~12AWG
Diameter range	Φ8mm~Φ12mm
Contact diameter×Qty	Φ3.0×3
Current rating(A)	25A
Temperature rise	20A contact temperature below 30℃ 25A contact temperature below 40℃
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<1.0mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0

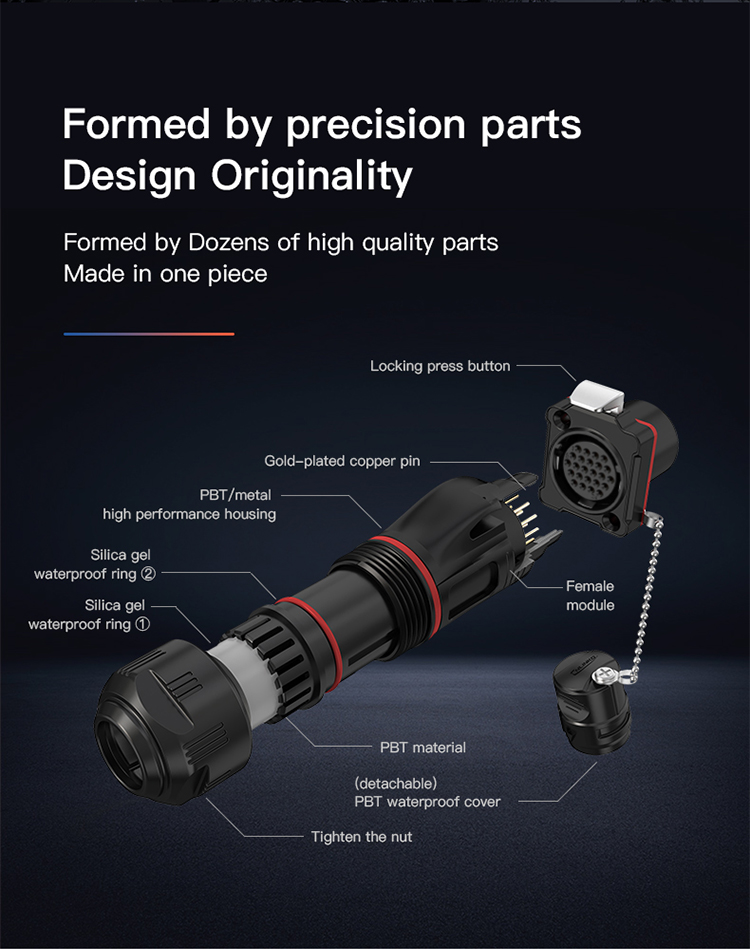

Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

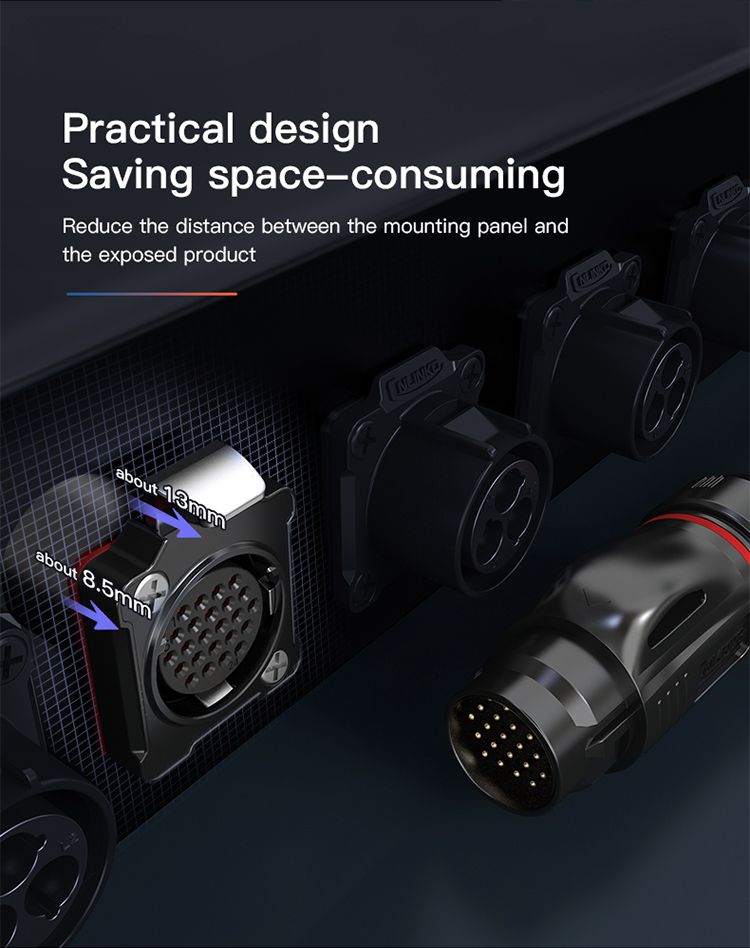

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

CNLINKO BD24 Plastic 19 Pin Industrial Waterproof Cable Panel Mount Connector Images
