Cnlinko Connector M20 High Current Battery Connector 3 Pin Plastic and Metal IP68 Waterproof LED Connector

Name: Cnlinko Connector M20 High Current Battery Connector 3 Pin Plastic and Metal IP68 Waterproof LED Connector
Brand: Cnlinko
Price: 4.04 USD

China Cnlinko Connector M20 High Current Battery Connector 3 Pin Plastic and Metal IP68 Waterproof LED Connector wholesale

Place of Origin : Guangdong, China

Brand Name : Cnlinko

Model Number : LP-20-J03PE-01-001A

Certification : CE,ROHS,CCC,ISO9001

MOQ : 10

Price : US$4.04-4.71

Type : XLR

Application : Power, Power

Gender : male and female, male plug+female socket or male socket+female plug

Protection level : IP65/IP67

Pin : 3 pin

Current rating(A) : 20A

Shell & Insulated Parts : PBT High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Solder(plug&unplug)

Operating voltage : 500V

Contact Now

M20 High Current Battery Connector 3 Pin Plastic And Metal IP68 Waterproof LED Connector

Product Description

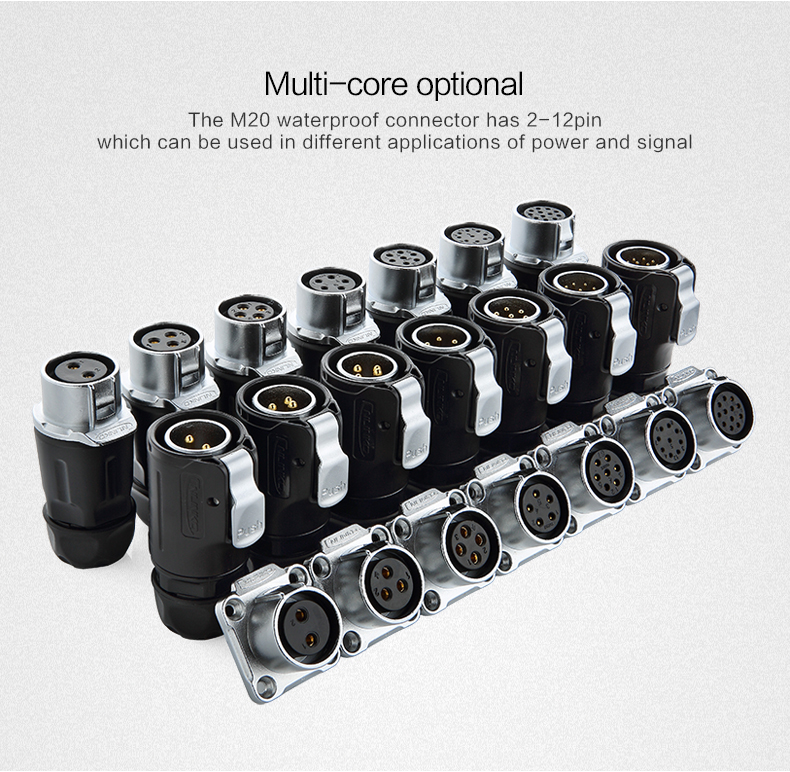

multi-pins(2-12 PINGS) for condition industrial demands

PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

gold-plated contact, high performance of corrosion resistance and electrical Conductivity effective deal with temperature rise.

1/4 mount connector, easy operation and installation

dustproof cover design under off-working condition

rated current is 20A rms

protection level: IP68

More Hot Products

Cnlinko Connector M20 High Current Battery Connector 3 Pin Plastic and Metal IP68 Waterproof LED Connector

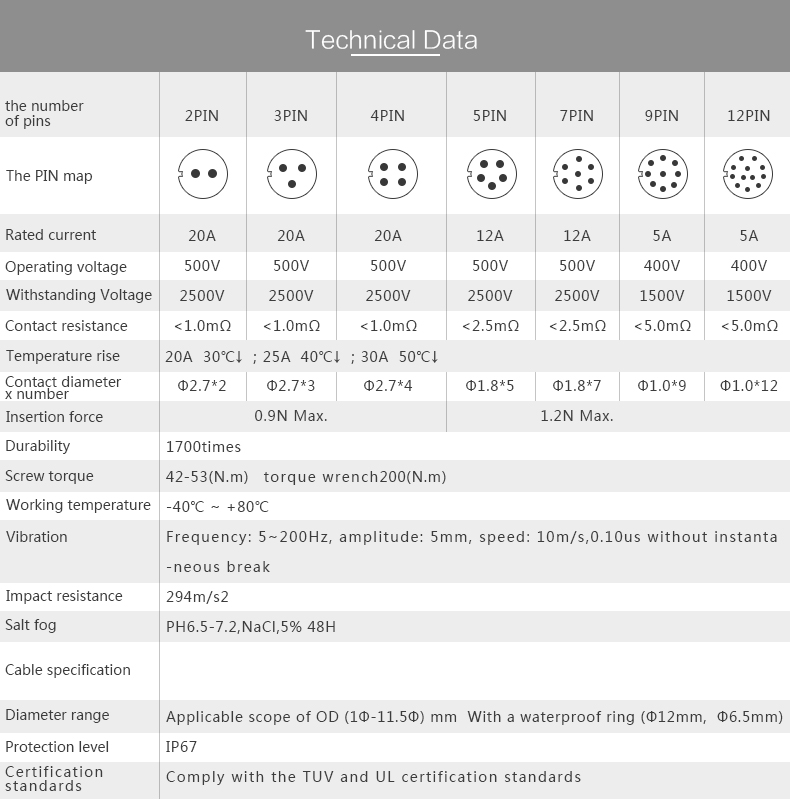

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ2.7×3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0

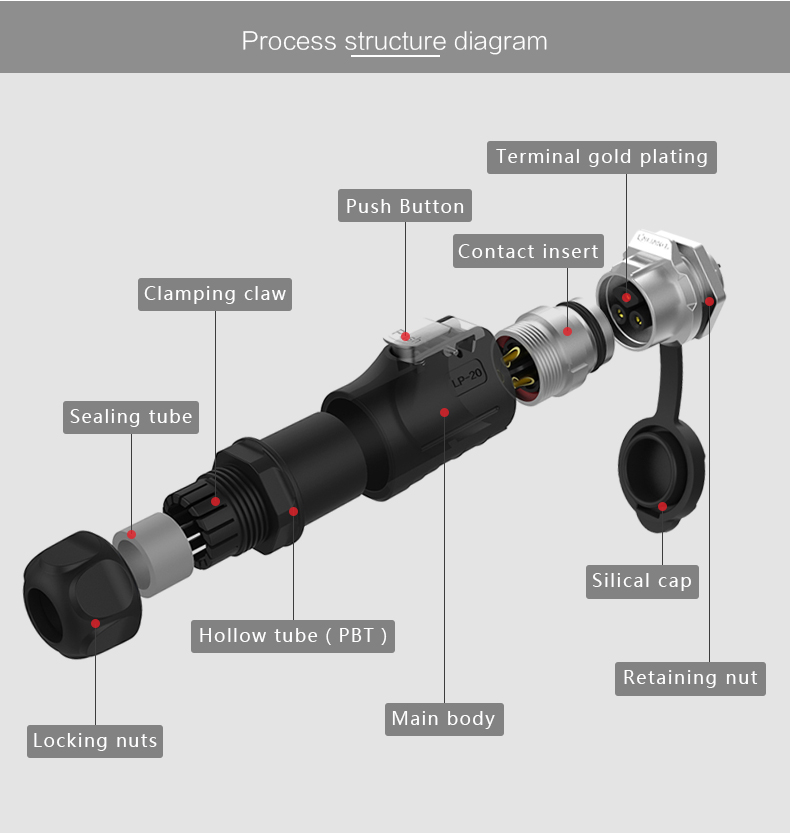

Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Cnlinko Connector M20 High Current Battery Connector 3 Pin Plastic and Metal IP68 Waterproof LED Connector

Cnlinko Connector M20 High Current Battery Connector 3 Pin Plastic and Metal IP68 Waterproof LED Connector Images
