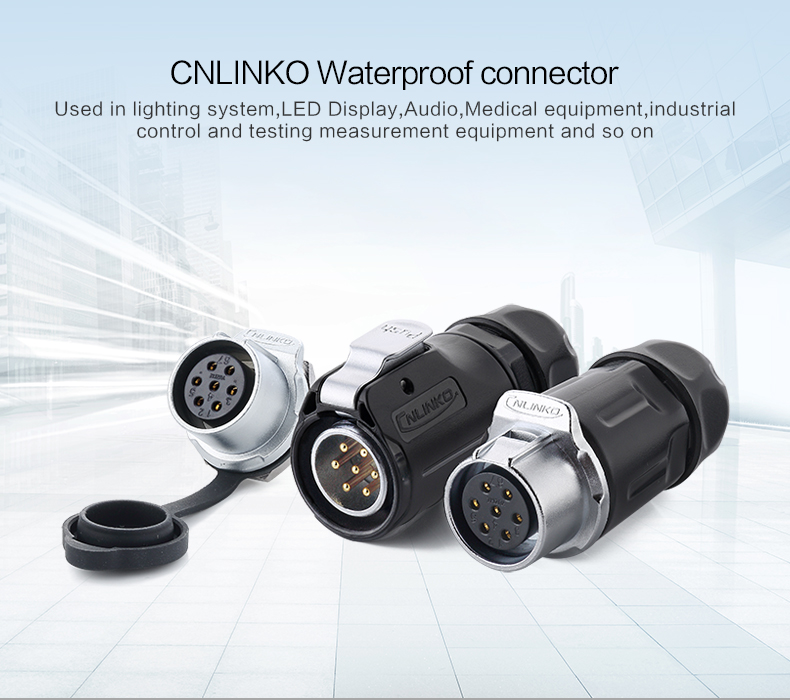

Cnlinko Ip68 Battery Bulkhead Circular Plug Socket Electrical 7 Pin Waterproof Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: Cnlinko Ip68 Battery Bulkhead Circular Plug Socket Electrical 7 Pin Waterproof Connector
Brand: CNLINKO
Price: 4.29 USD

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP-20-C07PE-01-022

Certification : CE,CCC,ISO9001

MOQ : 2

Price : US$4.29-5.01

Type : XLR

Application : Power

Gender : male and female

product type : 7 pin

Rated current : 12A

Rated Voltage : 500V

Protection level : IP68

Connecting mode : Easy locking type

Assembly wire : soldering

Product name : 7 pin waterproof connector

Cable Specification : 18-16 AWG

Diameter range : 7mm-9mm

Contact Now

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	1.0mm² ~ 1.5mm² /18~16AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ1.8×7
Current rating(A)	12A
Temperature rise	12A contact temperature below 30℃ 15A contact temperature below 40℃ 20A contact temperature below 50℃
Operating voltage(AC.V.rms)	500V
Withstanding voltage(AC.V)1min	2500V
Contact resistance	<2.5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Cnlinko Ip68 Battery Bulkhead Circular Plug Socket Electrical 7 Pin Waterproof Connector
