IP68 Rj45 Waterproof Ethernet Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: IP68 Rj45 Waterproof Ethernet Connector
Brand: CNLINKO
Price: 4.72 USD

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : YT-RJ45-CPE-01-001&YT-RJ45-JSX-01-001

MOQ : 10

Price : US$4.72-5.50

Shape : ROUND

IP level : ip68

Type : RJ45

Application : data

Gender : male and female

Connector type : RJ45

Withstanding Voltage : 1000V dc

Durability : 500 circles

Material : PBT, BLACK

Contact : Copper Alloy

Coupling ring : PA66,BLACK

Working Temperature : -40℃ ~ 80℃

Connecting mode : quickly bayonet connect

waterproof rate : ip68

Rated current : 1.5A

Contact Now

Product Description

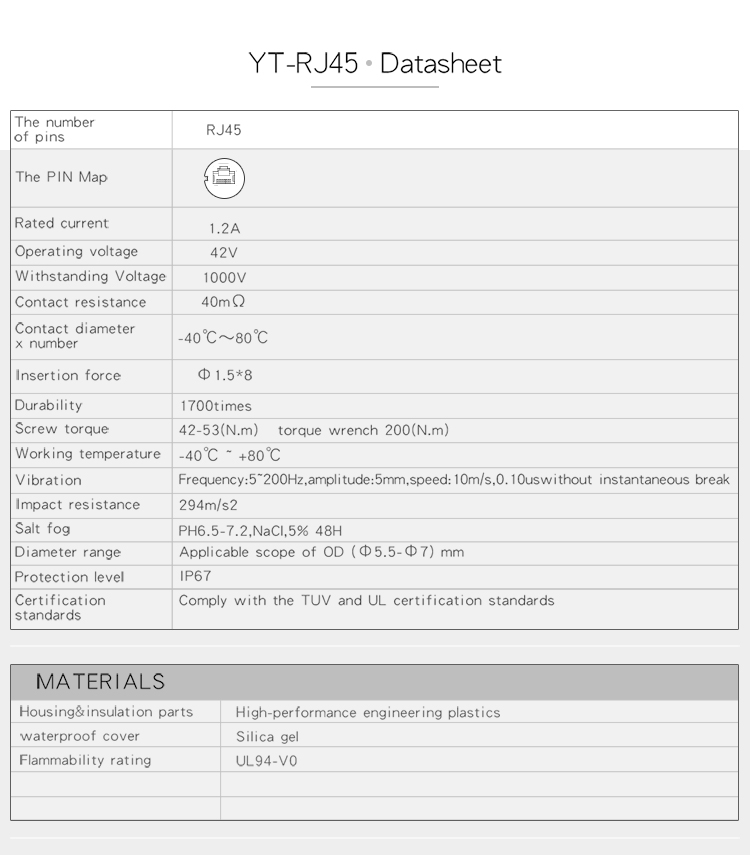

Specifications

Specifications
Connecting mode	1/4 bayonet connect Plug/unplug
Protection level	IP67
Cable specification	0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	8 Pin
Current rating(A)	5A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥750 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

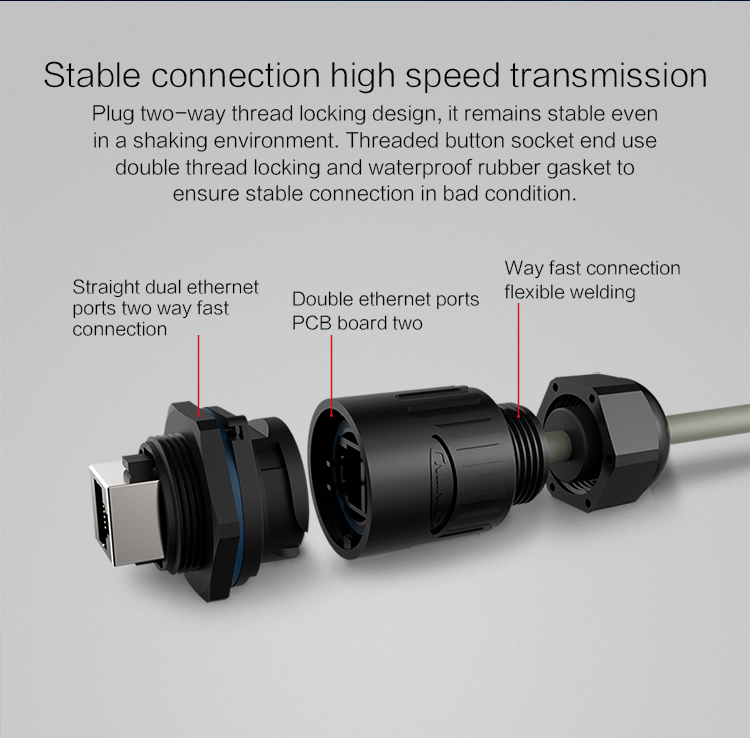

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

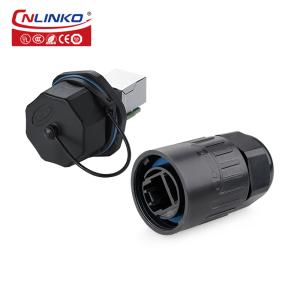

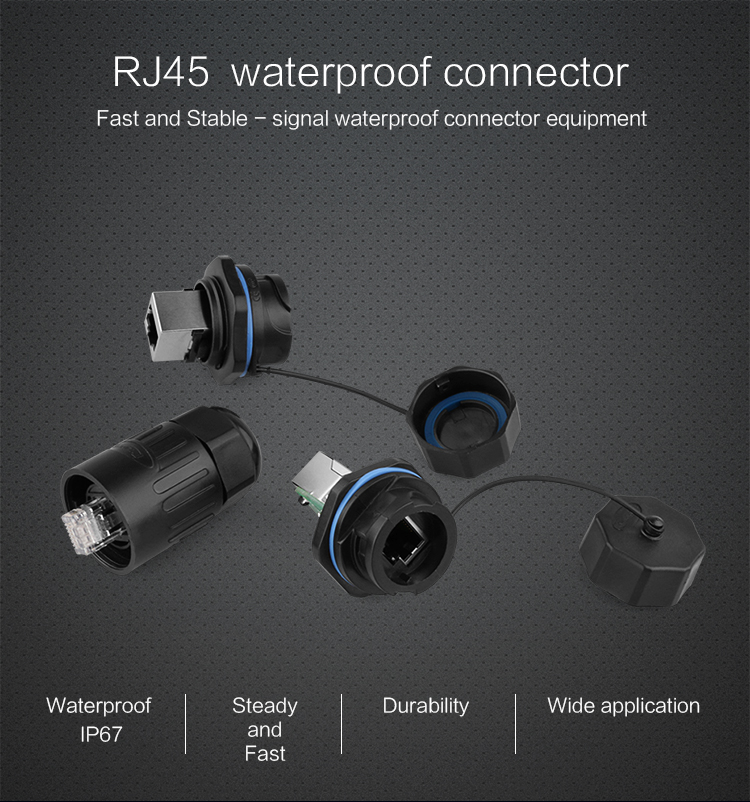

IP68 Rj45 Waterproof Ethernet Connector Images
