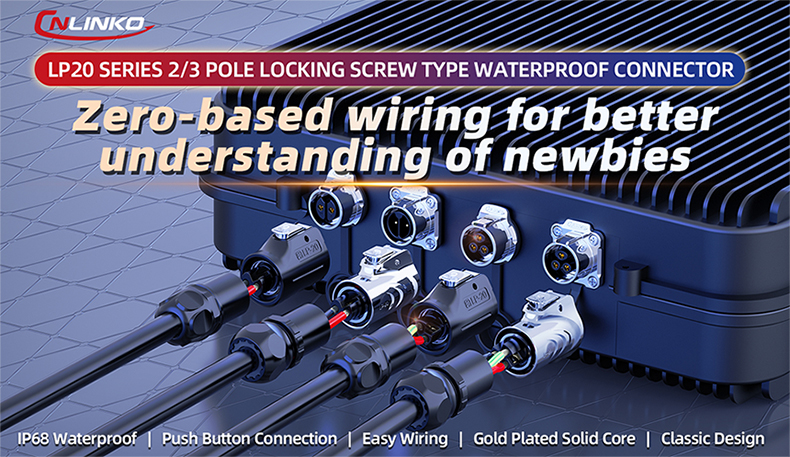

Cnlinko LP 20 2 Pin Plastic and Metal Aviation Connectors Wiring Screw Ip68 Waterproof Cable Connector

Product Categories

Shenzhen Connectorworld Technologies Co.Ltd.

Contact Now

Name: Cnlinko LP 20 2 Pin Plastic and Metal Aviation Connectors Wiring Screw Ip68 Waterproof Cable Connector
Brand: CNLINKO
Price: 1 USD

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : LP20

MOQ : 2

Type : Signal

Application : Audio & Video

Gender : male and female

Model : LP20

Rated current : 10A

Working Voltage : 400V AC

Withstanding Voltage : 2000V AC

Contact resistance(Max) : <3mΩ

Insulation resistance(Min) : 500MQ

Mechanical life : >500 Times

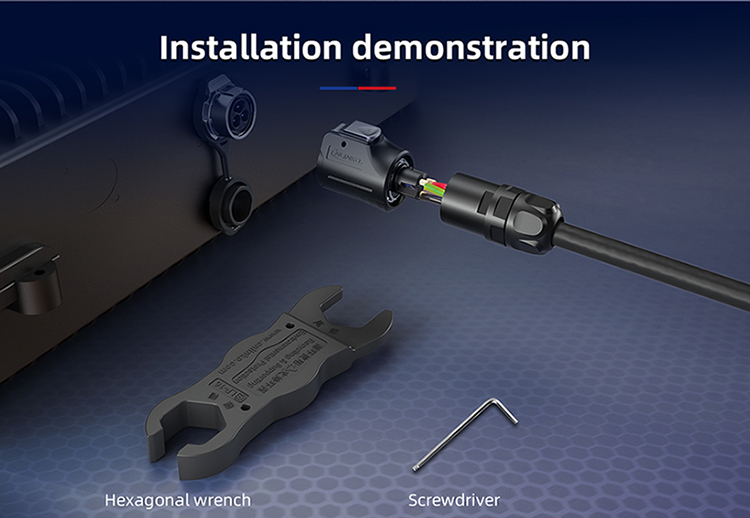

Wrench for locking screws : Hexagon socket wrench 0.9

Salt spray : PH6.5-7.2, NaCl,5% 48H

Contact Now

Product Description

Product Paramenters

Model	LP16 Series 2/3 pole locking screw type
Rated current	10A
Working Voltage	400V AC
Withstanding Voltage	2000V AC
Mechanical life	>500 Times
Wrench for locking screws	Hexagon socket wrench 0.9
Salt spray	PH6.5-7.2, NaCl,5% 48H
Protection level	IP68
Wire gauge	1.0~1.5mm2/18~16AWG

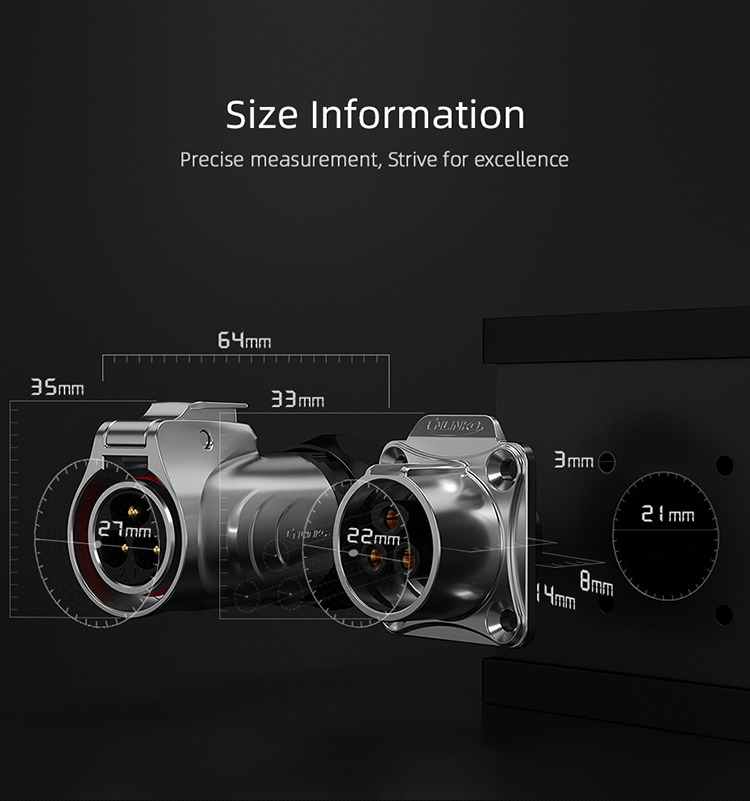

Cnlinko LP 20 2 Pin Plastic and Metal Aviation Connectors Wiring Screw Ip68 Waterproof Cable Connector Images
